Automatizační linky pro zpracování trubek a tyčí
Výrobní proces trubek a tyčí umíme zefektivnit!
Automatizované linky sloužící na úpravu trubek a tyčí nabízejí širokou škálu využitelnosti pro trubky různých rozměrů a materiálů. Díky našim automatizačním linkám můžete manipulaci a úpravu trubek a tyčí ve svém podniku několikanásobně zefektivnit.
![](https://www.prestar.cz/wp-content/uploads/2022/08/Rovnacka-menu.png)
Rovnací stroje
![](https://www.prestar.cz/wp-content/uploads/2022/05/Vnitrni-bruska-cover.png)
Bruska trubek vnitřní
![](https://www.prestar.cz/wp-content/uploads/2022/11/Pasova-bruska-Centerless-5.png)
Bruska trubek Centerless
![](https://www.prestar.cz/wp-content/uploads/2022/05/Letma-pila-cover.png)
Letmá pila
![](https://www.prestar.cz/wp-content/uploads/2022/05/Kotoucova-pila-cover.png)
Kotoučová pila
![](https://www.prestar.cz/wp-content/uploads/2022/05/Ukosovani-trubek-cover.png)
Úkosování trubek
![](https://www.prestar.cz/wp-content/uploads/2022/05/Zatkovani-cover.png)
Třídění a zátkování
![](https://www.prestar.cz/wp-content/uploads/2022/05/Kotrolni-stoly-cover.png)
Kontrolní stoly
![](https://www.prestar.cz/wp-content/uploads/2022/05/Balici-stroje-cover.png)
Balící stroje
![Bez názvu-3 [obnovený]](https://www.prestar.cz/wp-content/uploads/2022/08/Bez-nazvu-3-obnoveny.png)
Nová linka na trubky nebo tyče prokazatelně zefektivní výrobu
90% zákazníků vnímá technologie firmy Prestar jako vysoce pokrokové
Rovnací stroje

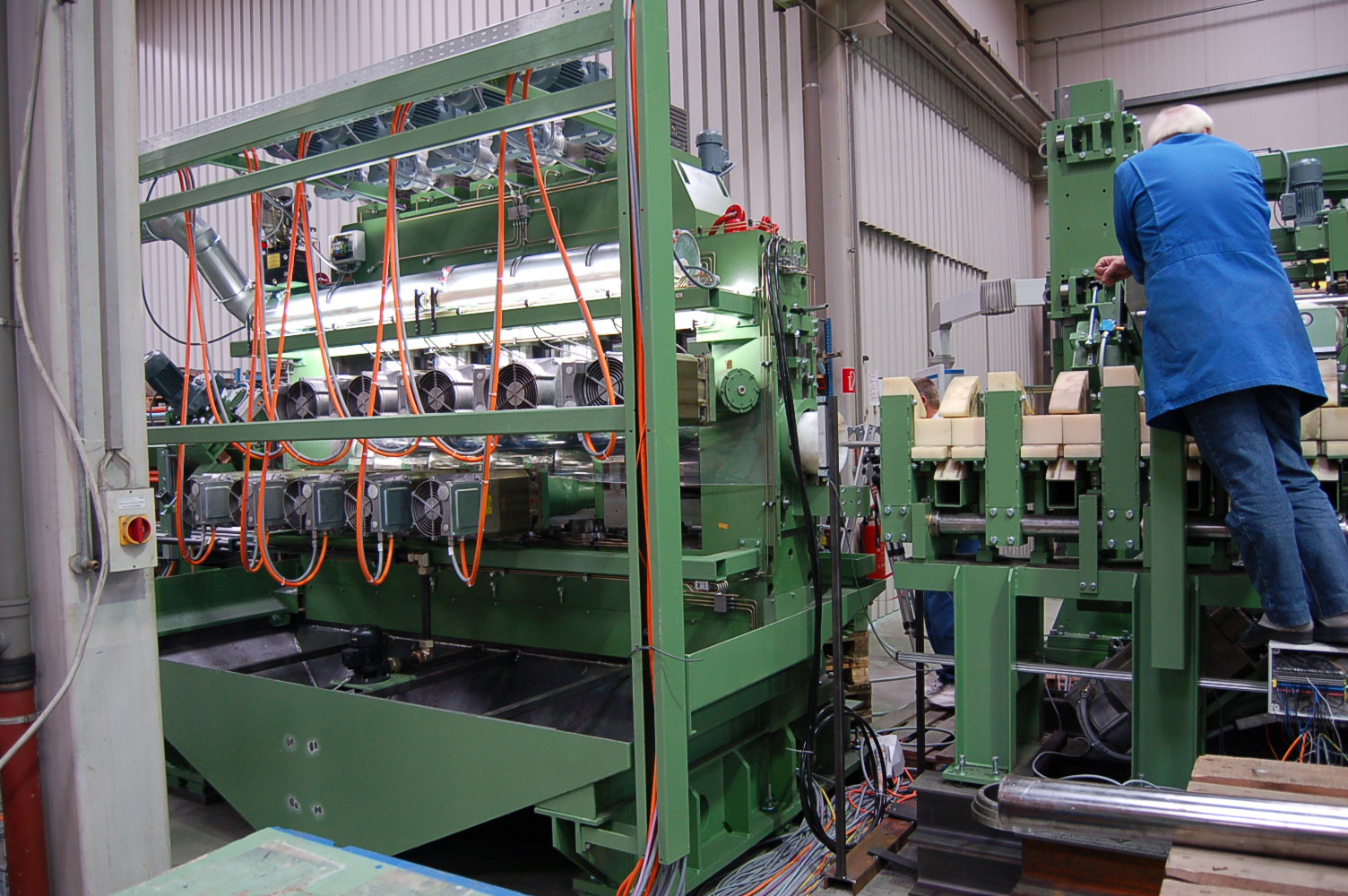

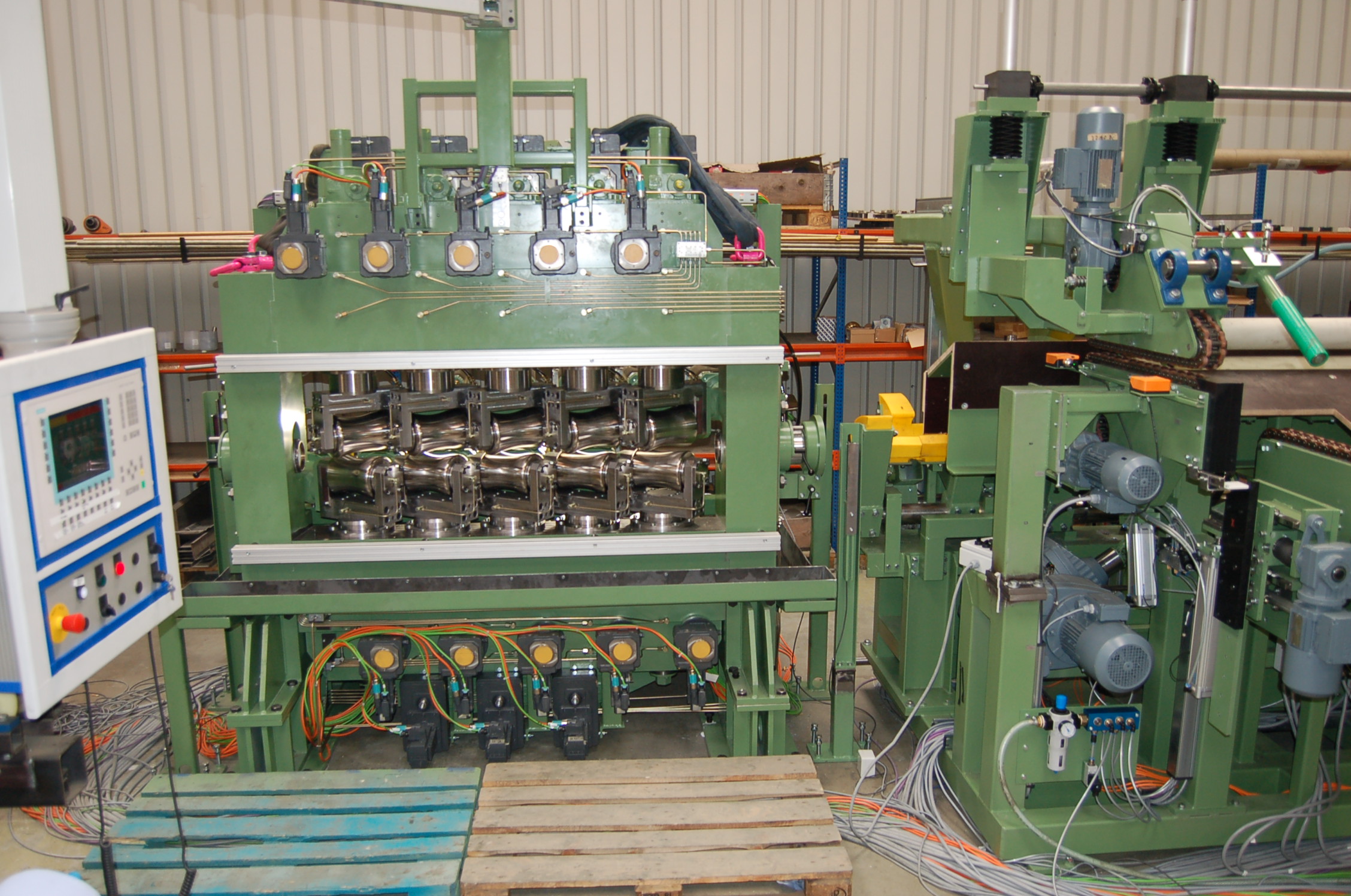

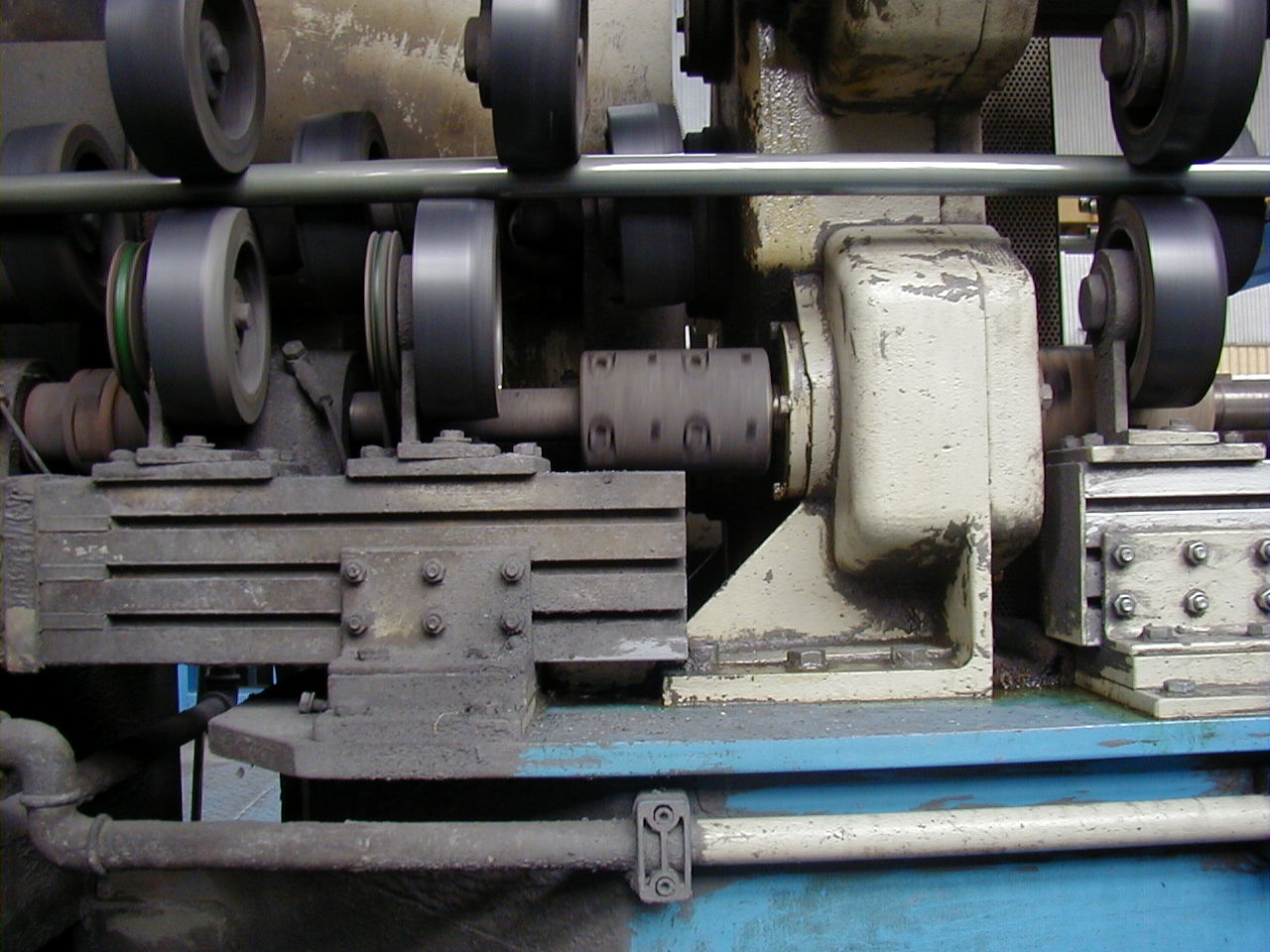

Popis zařízení

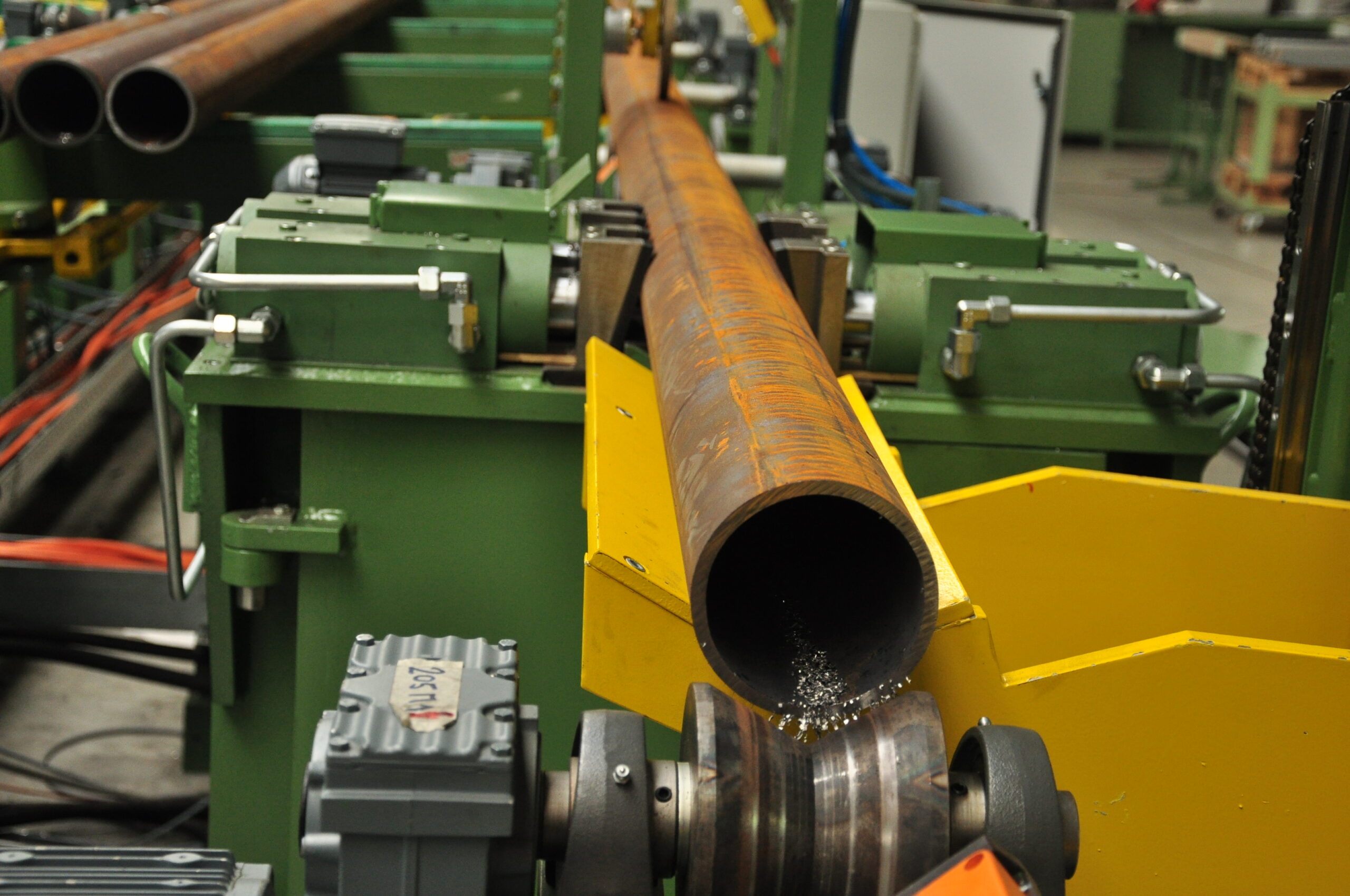

Pro rovnání trubek slouží 6- válcový nebo plně automatizovaný 10- válcový rovnací stroj
Technické parametry stroje
- Nasazení 10- válcového rovnací stroje umožňuje kvalitní výsledky rovnání
- Rychlé přestavení na nový rozměr trubky
- Ruční korekce nastavení, ukládání nastavení do receptur a přehlednost při ručním ovládání z řídícího pultu.
Ostatní vybavení stroje

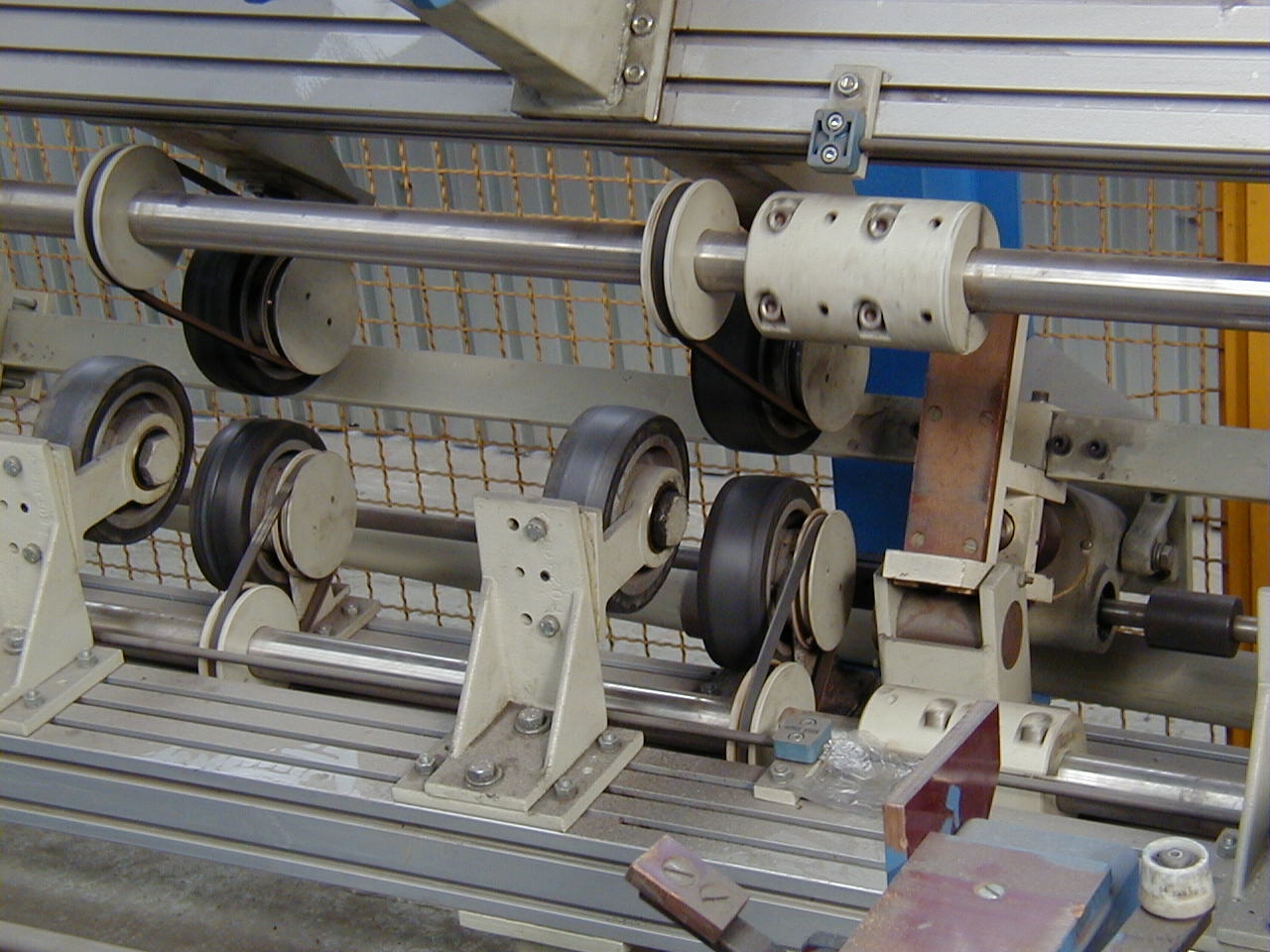

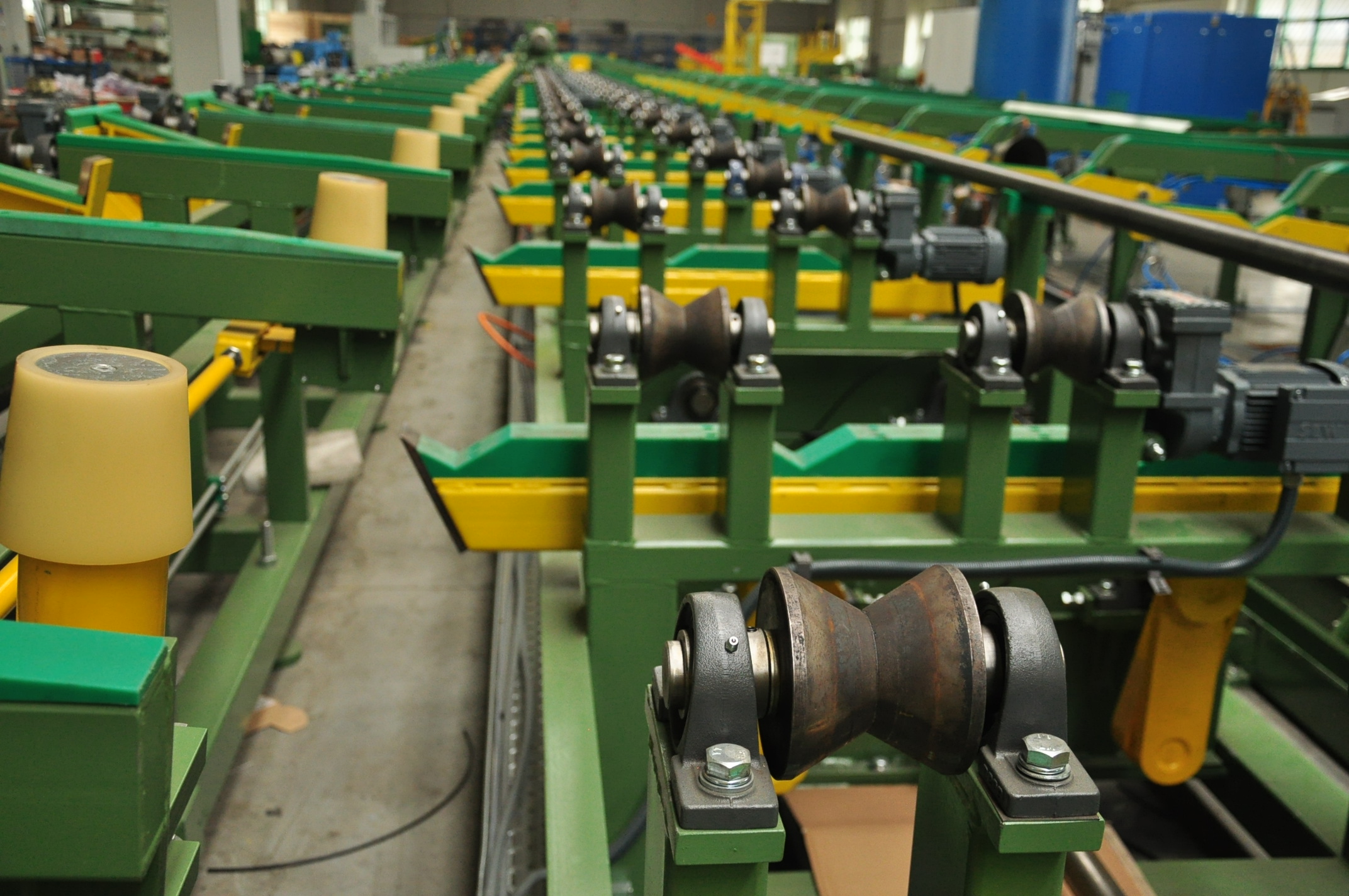

- Vstupní naváděcí VARIO žlab
- Rotační unašeč trubek do rovnacího stroje
- Vynášecí žlab
- Ochranný bezpečnostní kryt rovnacího stroje
- Čištění rovnacích válců
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-024-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-025-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-026-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-027-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-028-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-029-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-030-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-031-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-032-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-033-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-034-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-035-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-036-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-037-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-038-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-039-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-040-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-041-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-042-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-043-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-044-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-045-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-046-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-047-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-048-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-049-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-050-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-051-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-052-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-053-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-054-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-055-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-056-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-057-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-058-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-059-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-060-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-061-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-062-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-063-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-064-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-065-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-066-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-067-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-068-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-069-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-070-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-071-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-001-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-002-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-003-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-004-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-005-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-006-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-007-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-008-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-009-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-010-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-011-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-012-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-013-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-014-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-015-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-016-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-017-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-018-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-019-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-020-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-021-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-022-19.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-023-19.png)
![Lišty s logy ke každému produkto_letmá pila](https://www.prestar.cz/wp-content/uploads/2022/09/Listy-s-logy-ke-kazdemu-produkto_letma-pila-1.png)

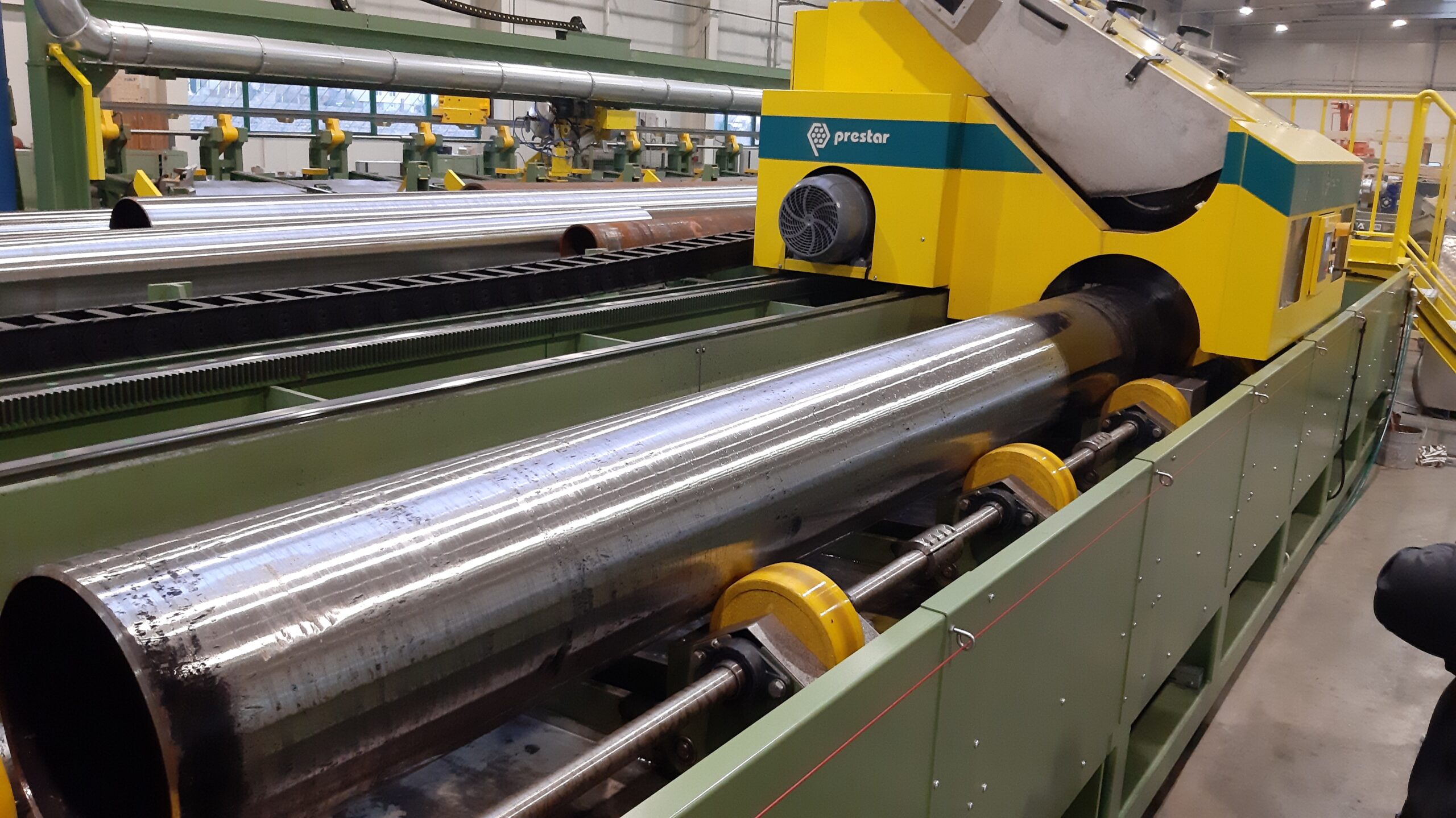

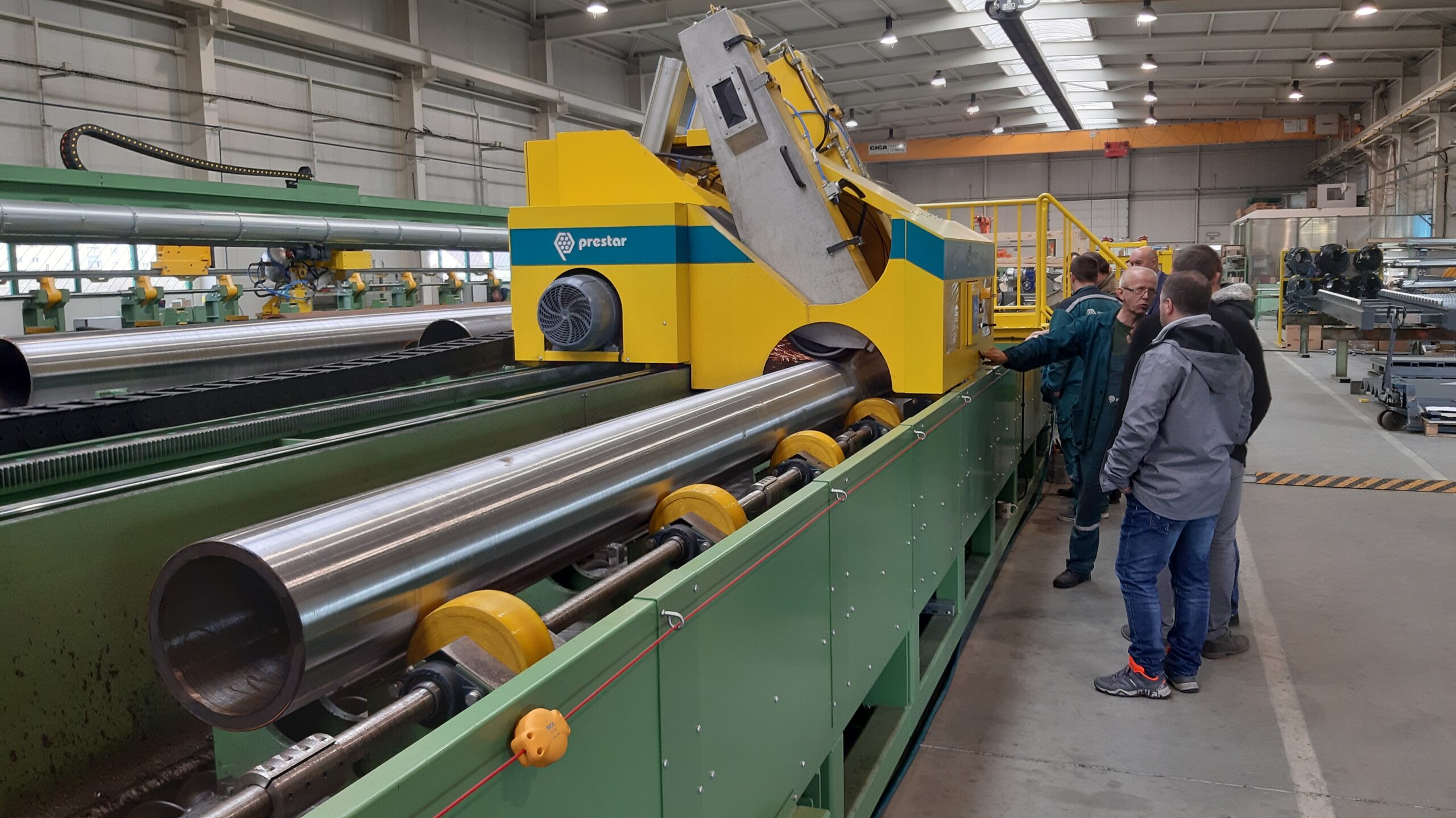

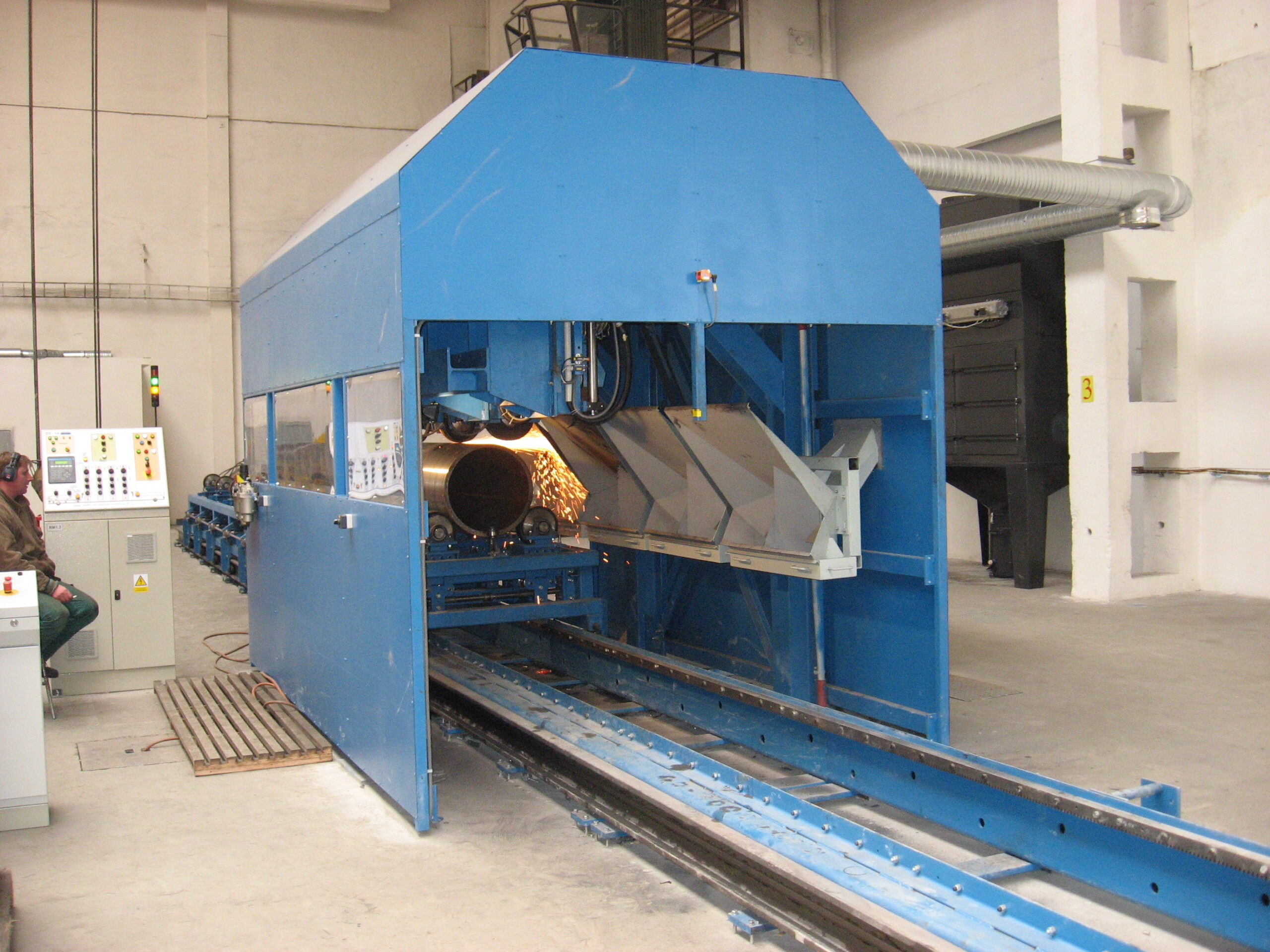

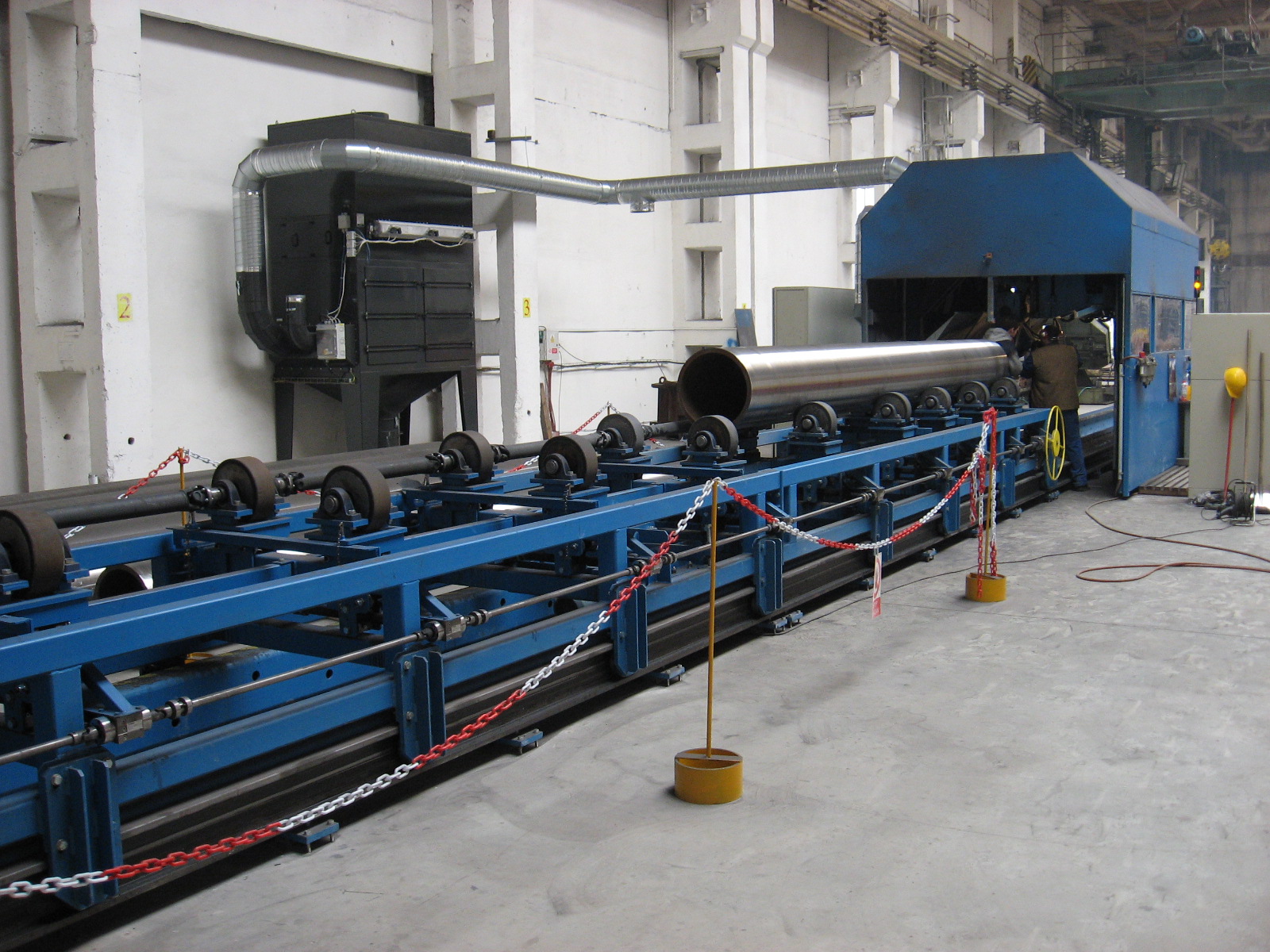

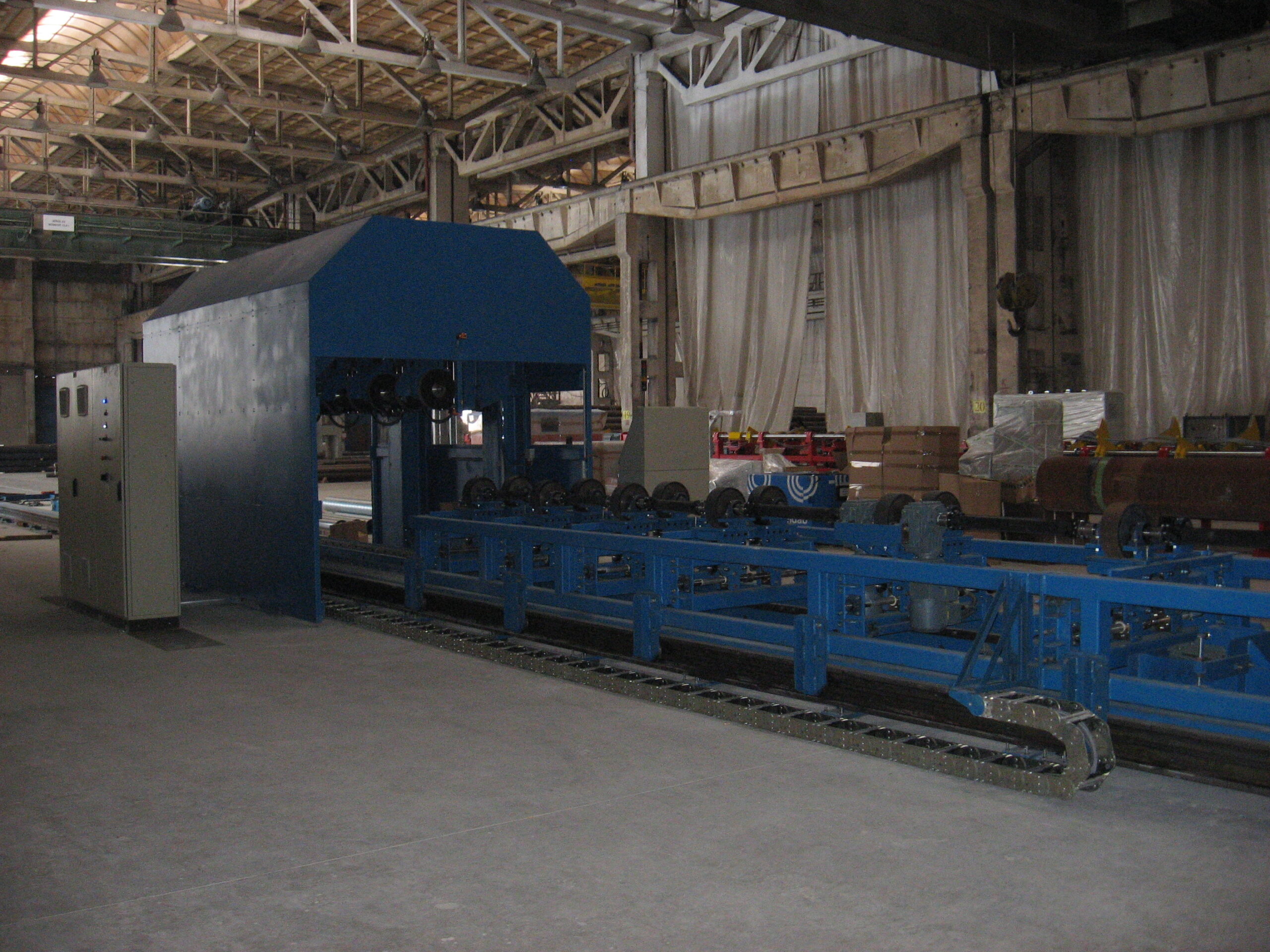

Bruska trubek vnitřní

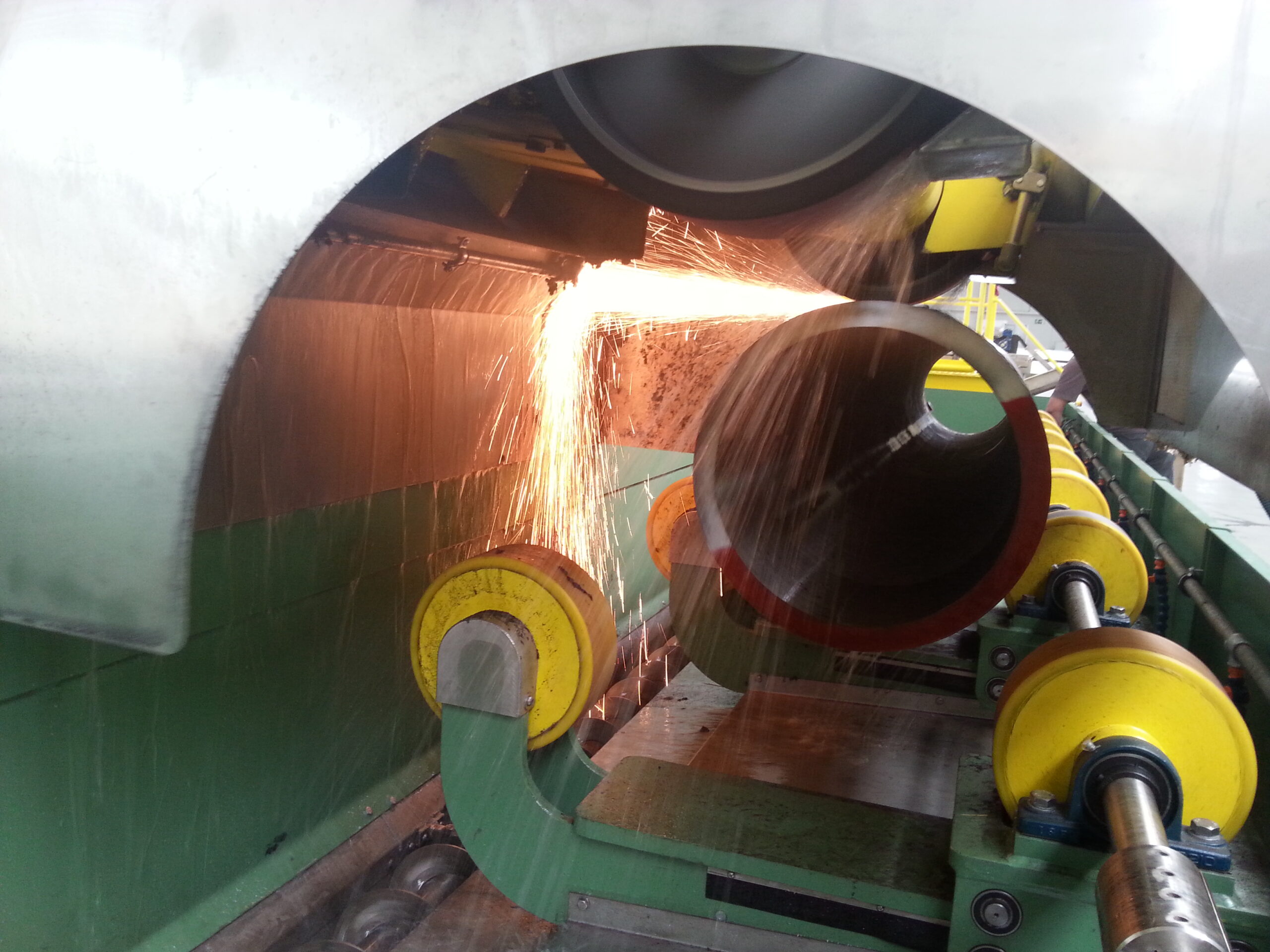

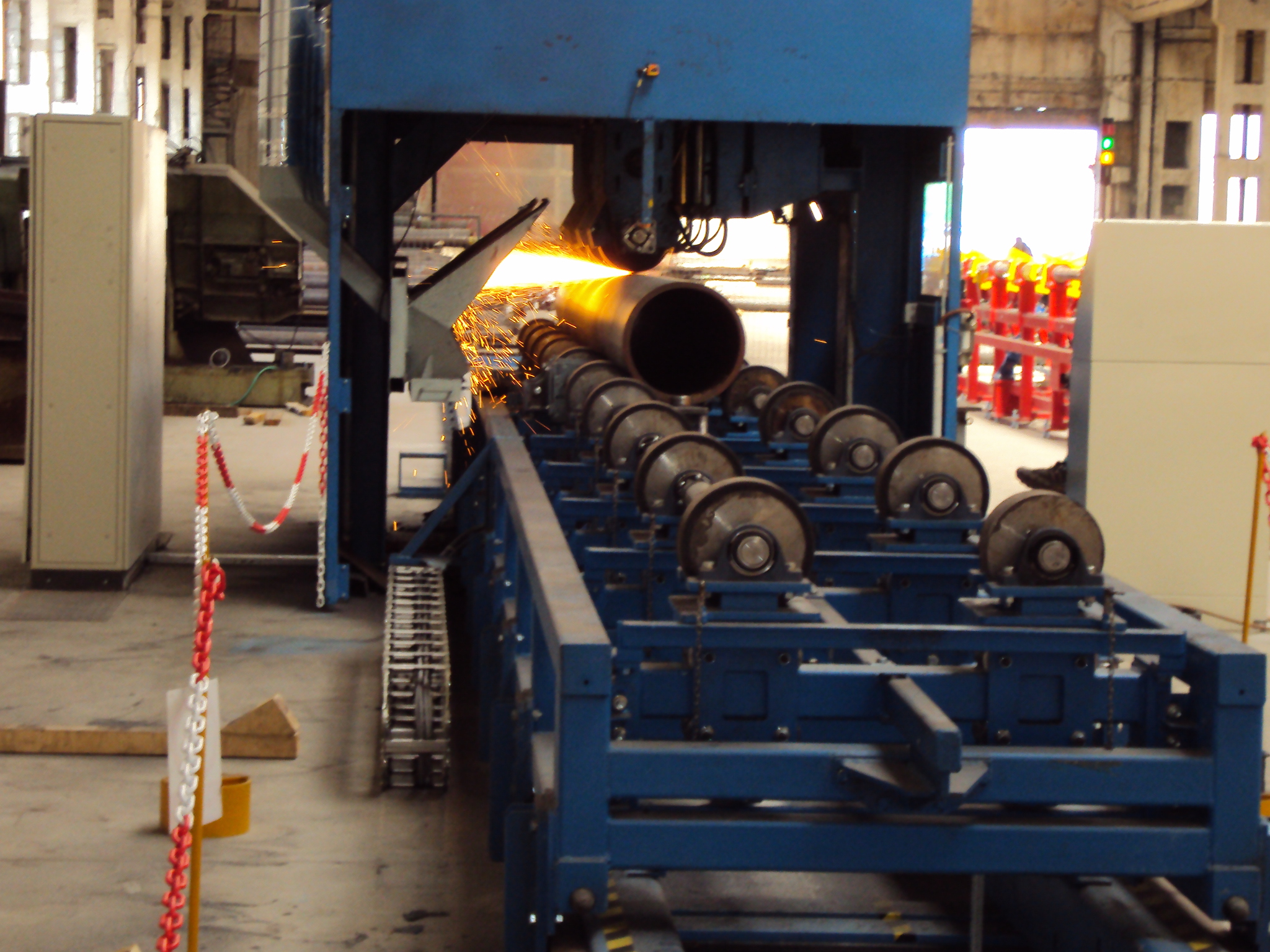

Popis zařízení
Slouží k odstranění povrchových vad a k odstranění okují z vnitřního průměru trubek.
Trubka rotuje pomocí poháněných radiálních lunet a do trubky je zasouván vodicí trn s brusným kotoučem. Kotouč je tvořen sadou brusných kamenů.
Technické parametry stroje
Vnitřní průměr trubek: | 180 – 600 mm |
Délka trubek při jednostranném broušení: | do 8 000 mm |
Max. délka trubek při broušení z obou stran: | do 16 000 mm |
Úběr materiálu při jednom cyklu projetí : | do 0,20 mm |
Jakost vnitřního povrchu po broušení: | až 1,6 Ra |
Automatický režim umožňuje: |
|
Odsávání obrusu: | napojením elastické otěruvzdorné hadice na konec trubky pomocí vyměnitelné konické hlavice |
Ostatní vybavení stroje

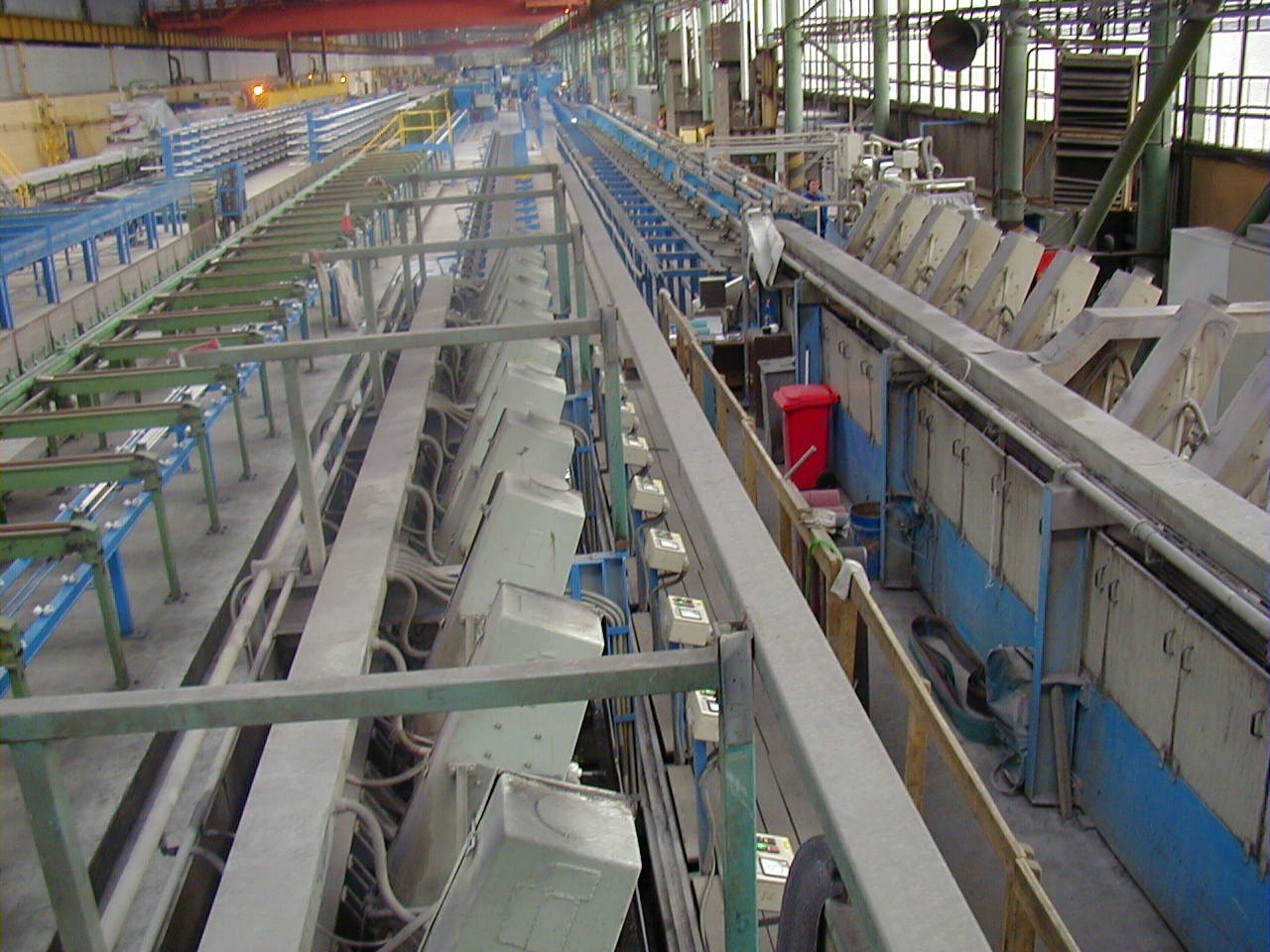

- Vstupní zásobníkové stoly s automatickými překladači. Překladače přeloží trubku ze stolu na radiální válečky do osy broušení
- Překladače pro vyložení trubky z válečků na odkládací stůl
- Filtrační zařízení s ventilátorem pro odsávání nečistot po broušení. Filtrační zařízení je možno ustavit v prostoru výrobní haly
- Poloautomatické nasunutí odsávací hadice na odsávaný konec trubky
- U dlouhých trubek nad 8 m ustavení dvou zrcadlových brusek pro broušení trubky z obou konců. Toto řešení zvyšuje produktivity výroby dlouhých trubek a šetří manipulační časy vč. otáčení trubek o 180 st.
- Ruční ultrazvukové měření tloušťky stěny trubky
- Rozšířená vizualizace s důrazem na intuitivní a podrobné zobrazování provozních stavů a místa vzniku poruchy brusky
- Rozšířený servis s možnosti zobrazení návodů, servisních příruček a další potřebné dokumentace na HMI stroje s cílem minimalizovat servisní časy
- Sběr dohodnutých výrobních parametrů s automatickým ukládáním, možností zobrazení a exportů dat
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-021-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-022-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-023-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-024-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-025-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-026-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-027-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-028-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-029-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-030-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-031-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-032-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-033-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-034-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-035-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-036-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-037-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-038-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-039-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-040-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-041-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-042-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-043-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-044-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-045-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-046-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-047-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-048-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-049-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-050-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-051-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-052-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-053-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-054-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-055-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-056-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-057-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-058-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-059-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-060-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-061-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-062-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-063-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-064-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-065-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-066-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-067-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-068-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-069-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-070-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-071-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-001-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-002-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-003-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-004-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-005-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-006-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-007-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-008-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-009-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-010-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-011-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-012-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-013-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-014-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-015-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-016-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-017-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-018-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-019-12.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-020-12.png)
![bruska vnitřní](https://www.prestar.cz/wp-content/uploads/2022/09/bruska-vnitrni-1.png)

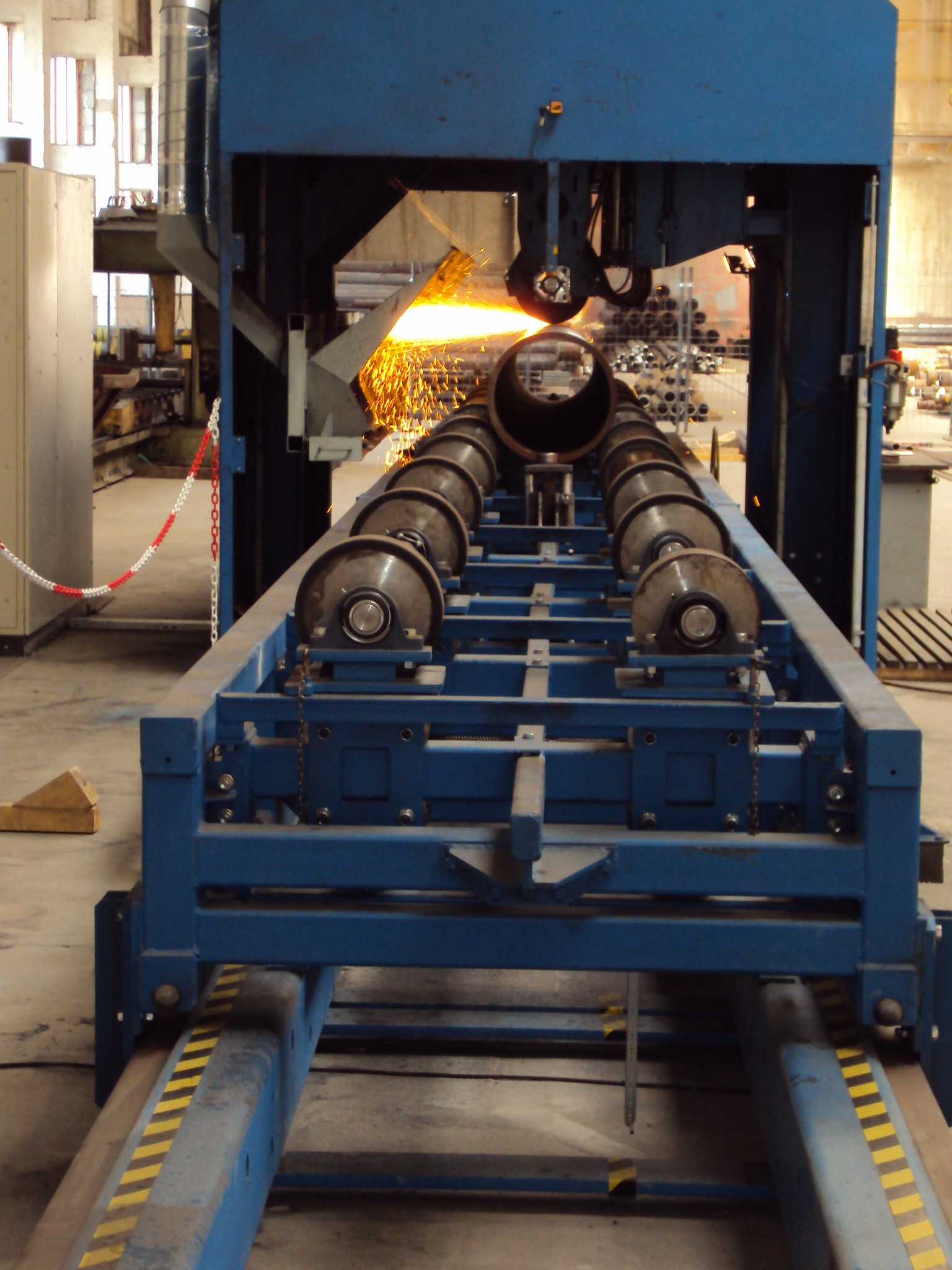

Bruska trubek vnější stacionární
Popis zařízení
Technické parametry stroje
Průměr trubek: |
200 – 600 mm |
Délka trubek: |
3 000 – 16 000 mm |
Úběr materiálu: |
až 0,5 mm při jednom cyklu |
Brusné pásy: |
150 x 3 000 mm |
Přítlak brusných pásů: |
pneumaticky |
Napínání brusných pásů: |
pneumaticky |
Brusná rychlost: |
30 m/s |
Výměna brusných pásů: |
v parkovací pozici brousící jednotky je připravena plošina pro snadný přístup k brusným pásům |
Řídící pult s displejem: |
umístění na pojízdné brousící jednotce |
Ostatní vybavení stroje
- Plynulá regulace brusné rychlosti pásů
- Manipulační traverza pro vkládání a odebírání trubky do stroje a ze stroje
- Ruční ultrazvukové měření tloušťky stěny trubky
- Rozšířená vizualizace s důrazem na intuitivní a podrobné zobrazování provozních stavů a místa vzniku poruchy brusky
- Rozšířený servis s možnosti zobrazení návodů, servisních příruček a další potřebné dokumentace na HMI stroje s cílem minimalizovat servisní časy
- Sběr dohodnutých výrobních parametrů s automatickým ukládáním, možností zobrazení a exportů dat
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-002-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-003-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-004-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-005-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-006-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-007-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-008-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-009-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-010-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-011-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-012-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-013-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-014-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-015-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-016-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-017-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-018-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-019-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-020-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-021-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-022-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-023-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-024-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-025-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-026-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-027-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-028-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-029-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-030-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-031-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-032-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-033-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-034-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-035-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-036-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-037-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-038-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-039-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-040-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-041-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-042-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-043-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-044-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-045-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-046-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-047-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-048-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-049-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-050-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-051-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-052-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-053-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-054-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-055-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-056-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-057-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-058-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-059-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-060-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-061-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-062-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-063-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-064-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-065-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-066-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-067-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-068-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-069-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-070-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-071-13.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-001-13.png)

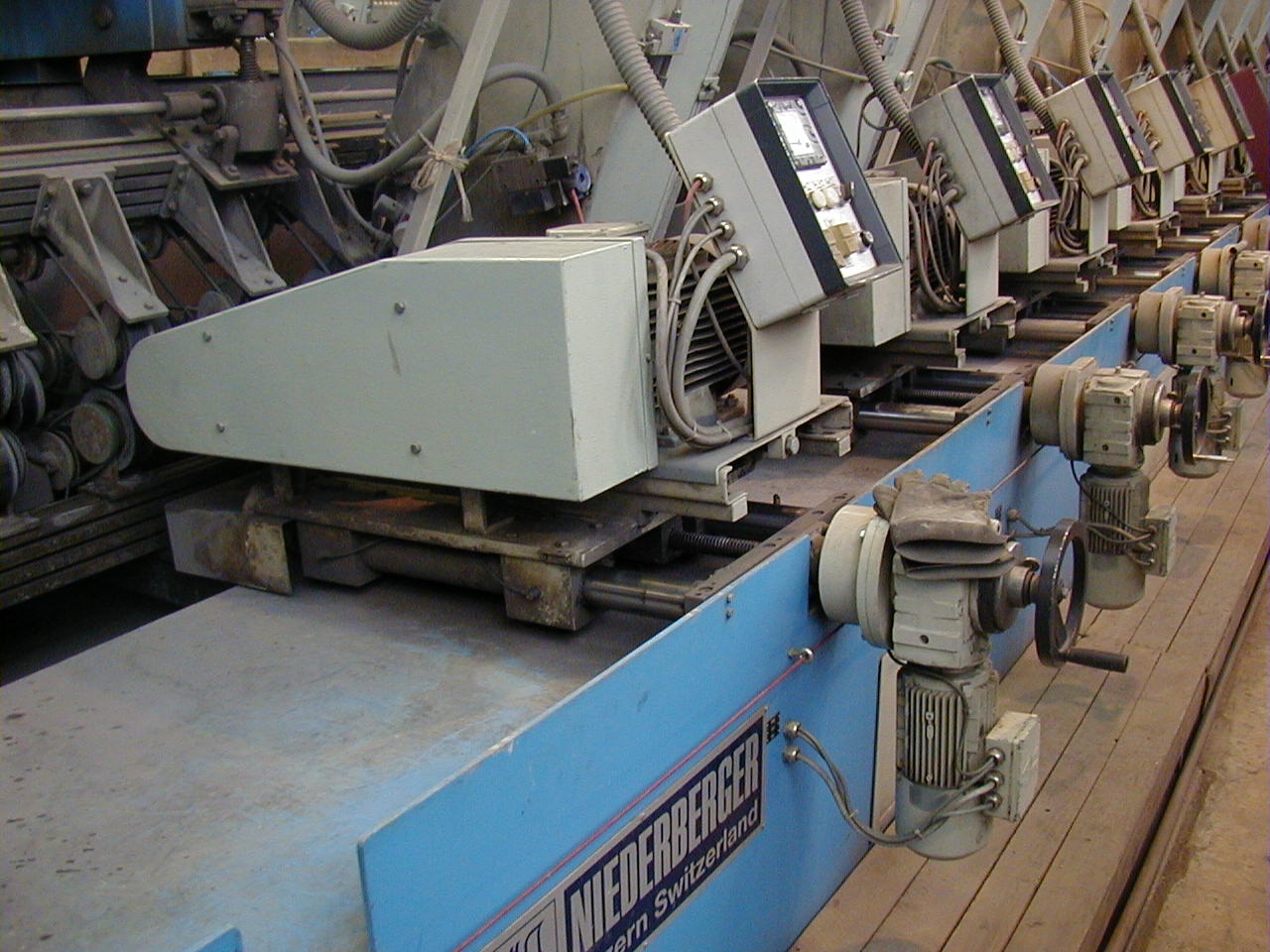

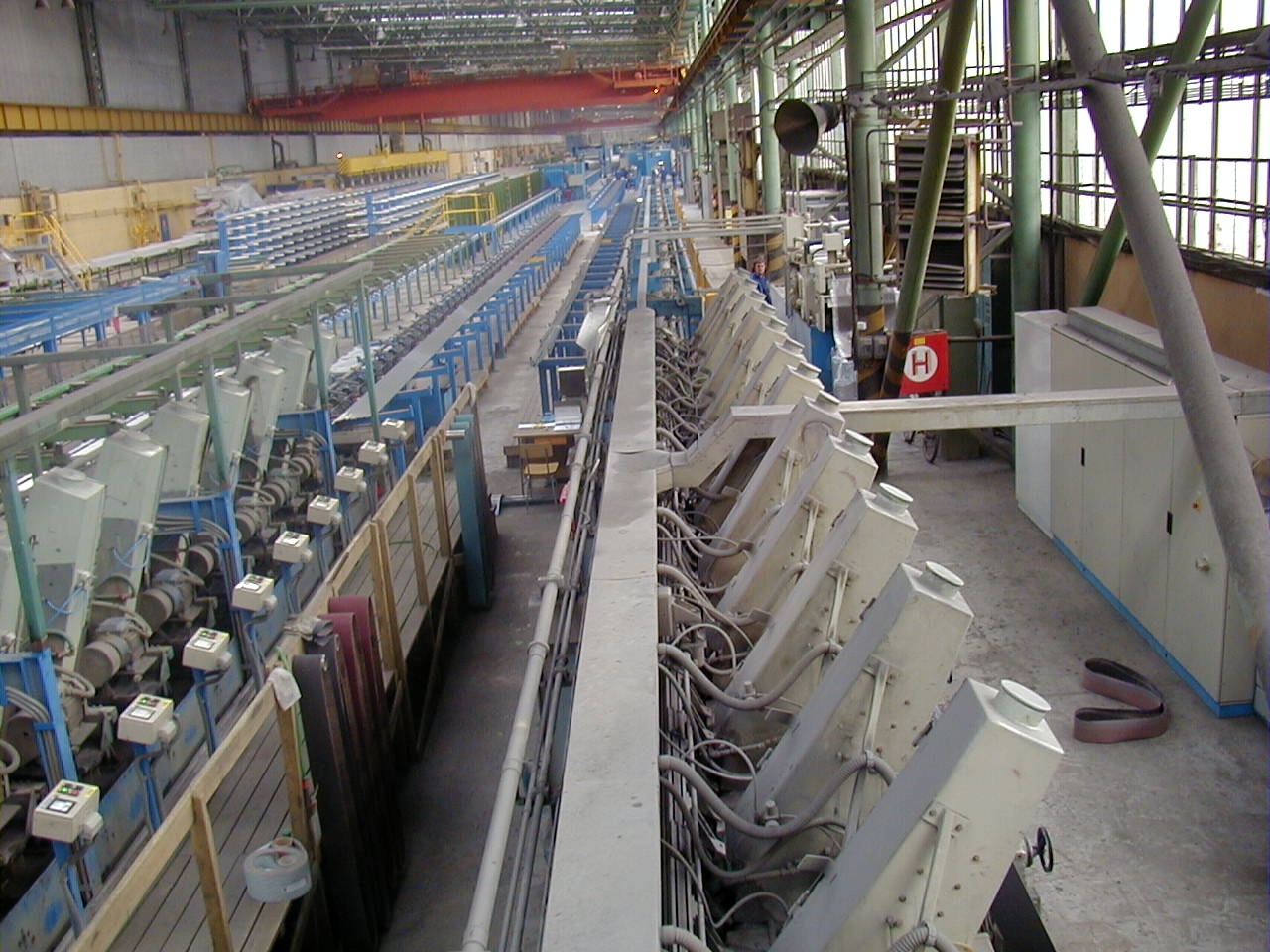

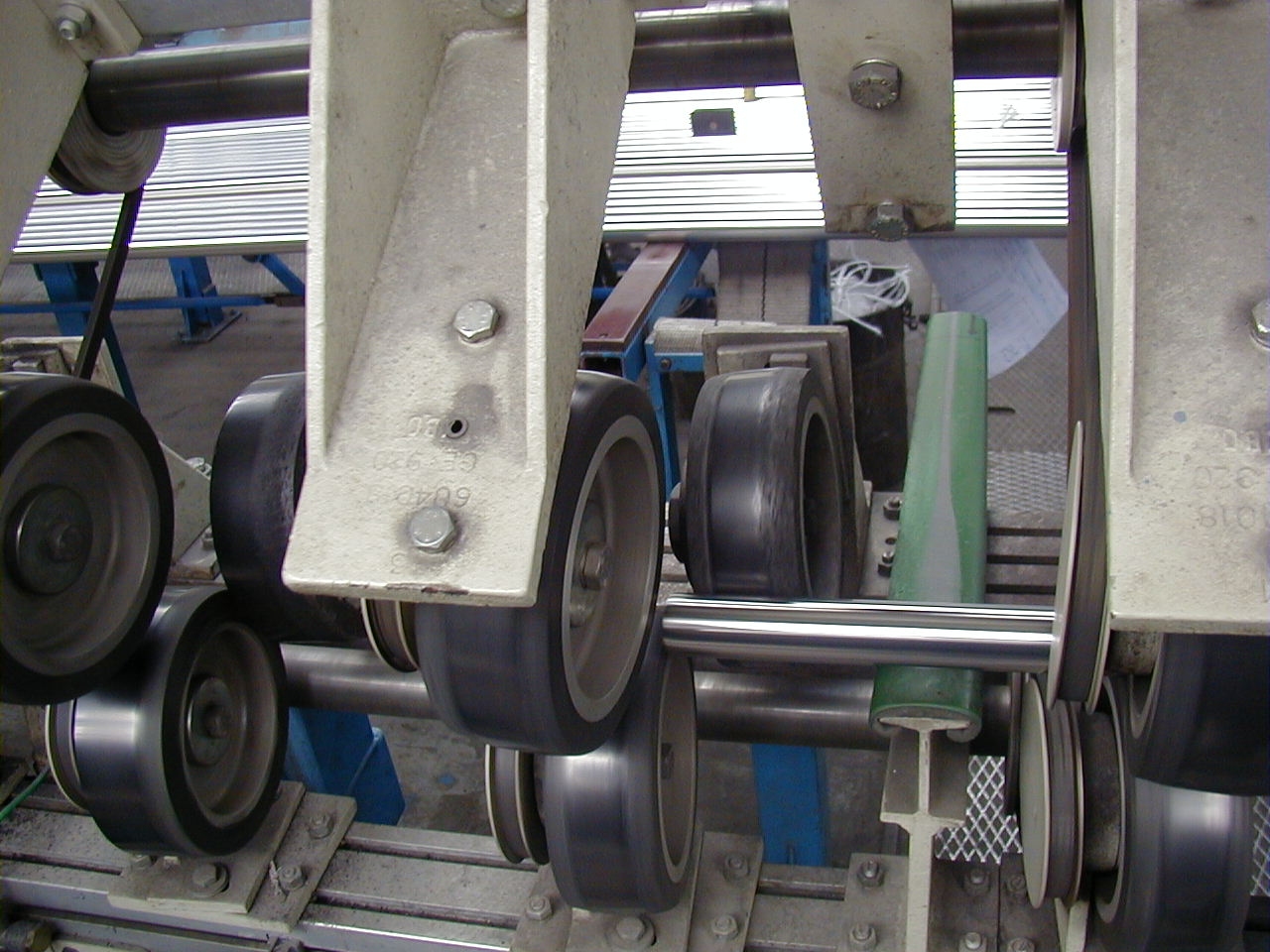

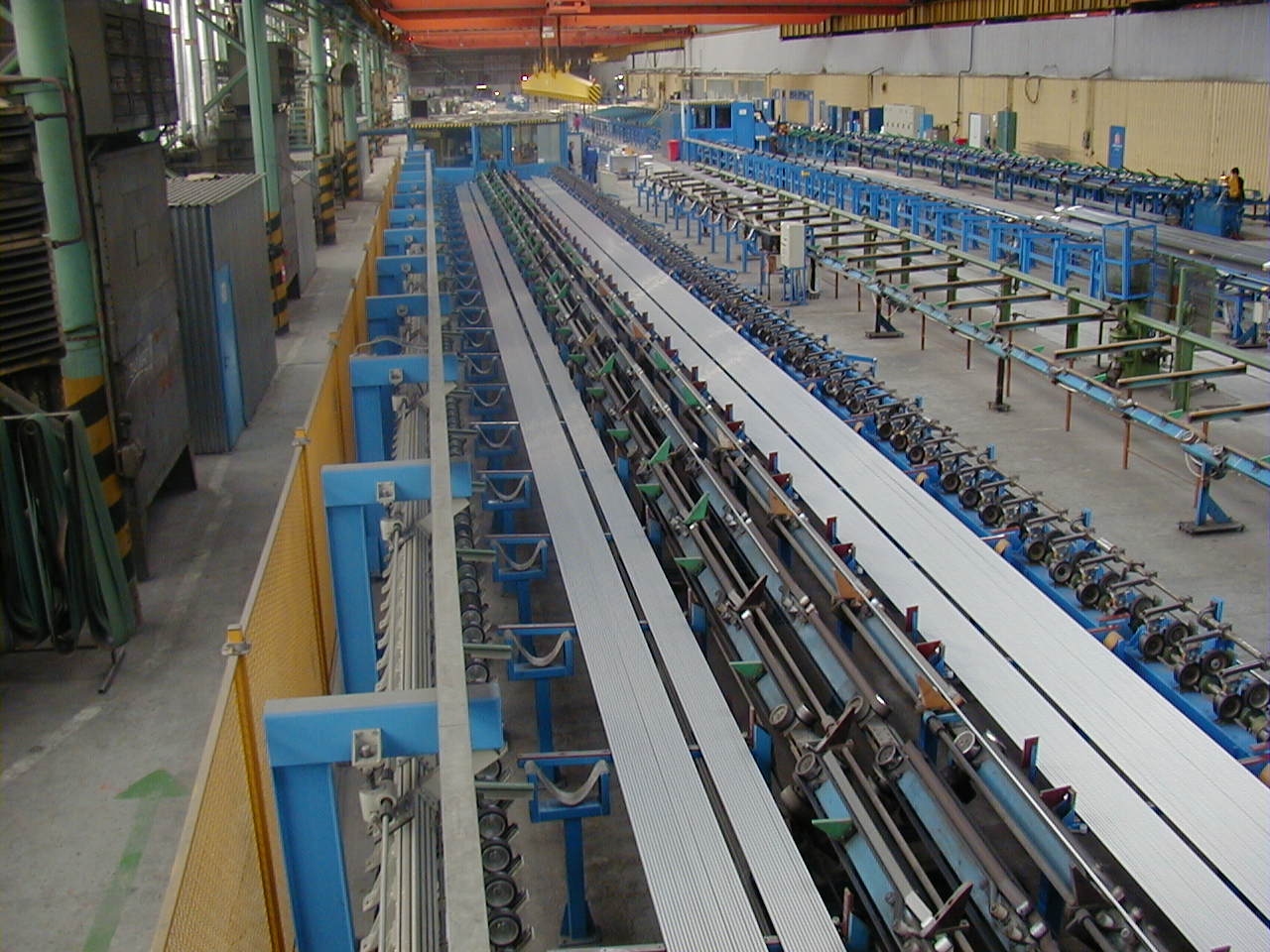

![centerless](https://www.prestar.cz/wp-content/uploads/2022/09/centerless-1.png)

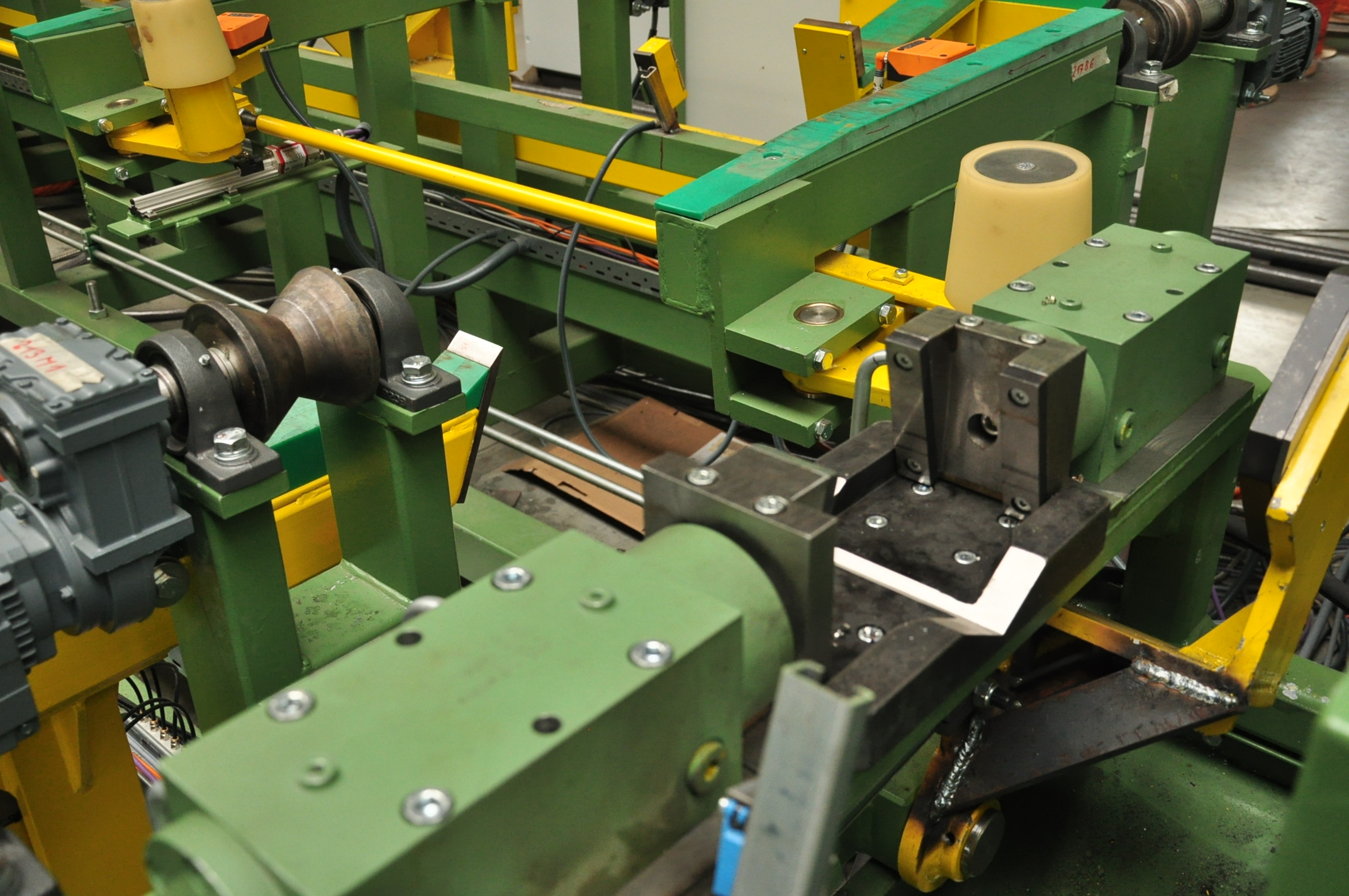

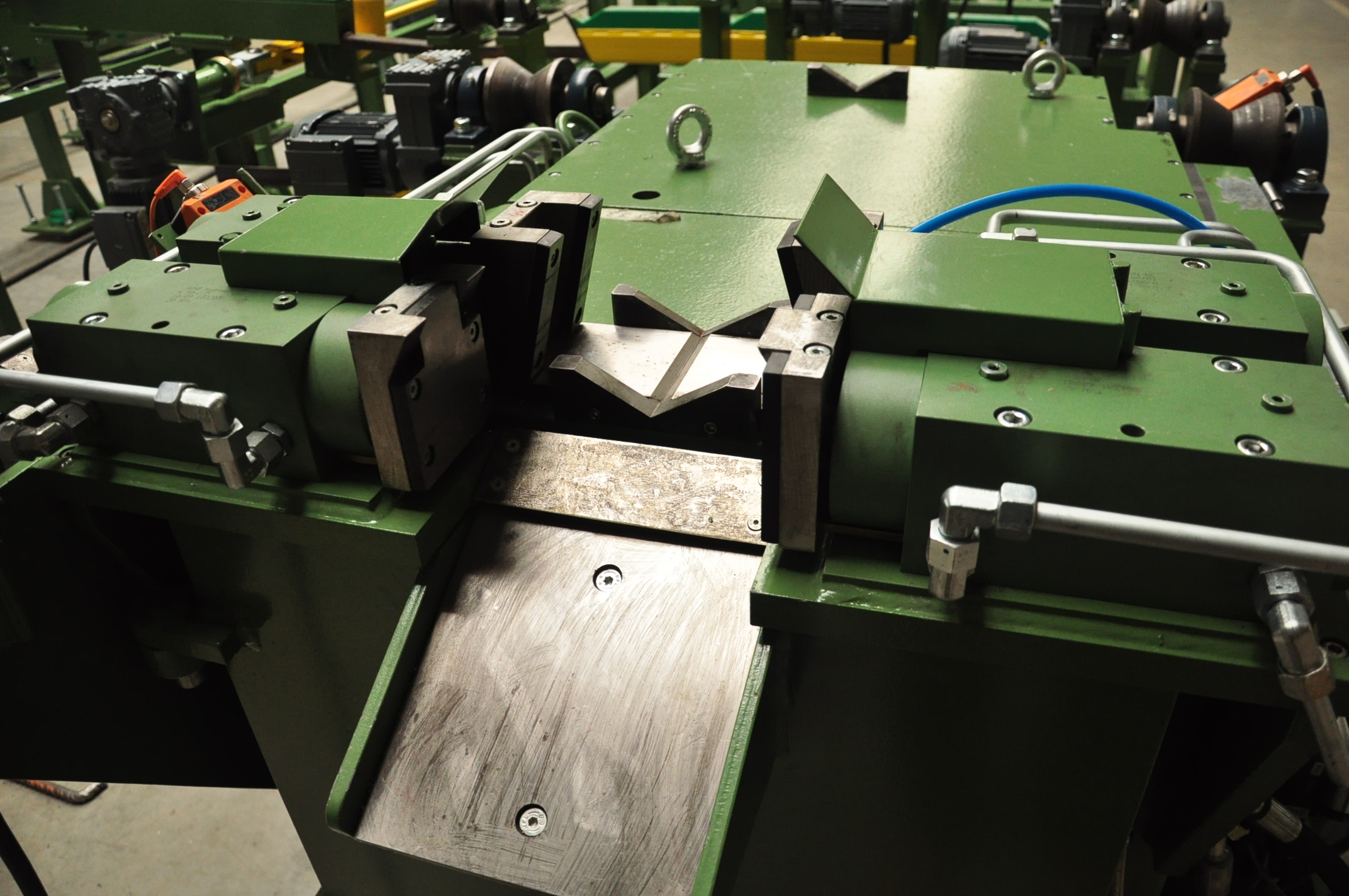

Kotoučová pila
Popis zařízení

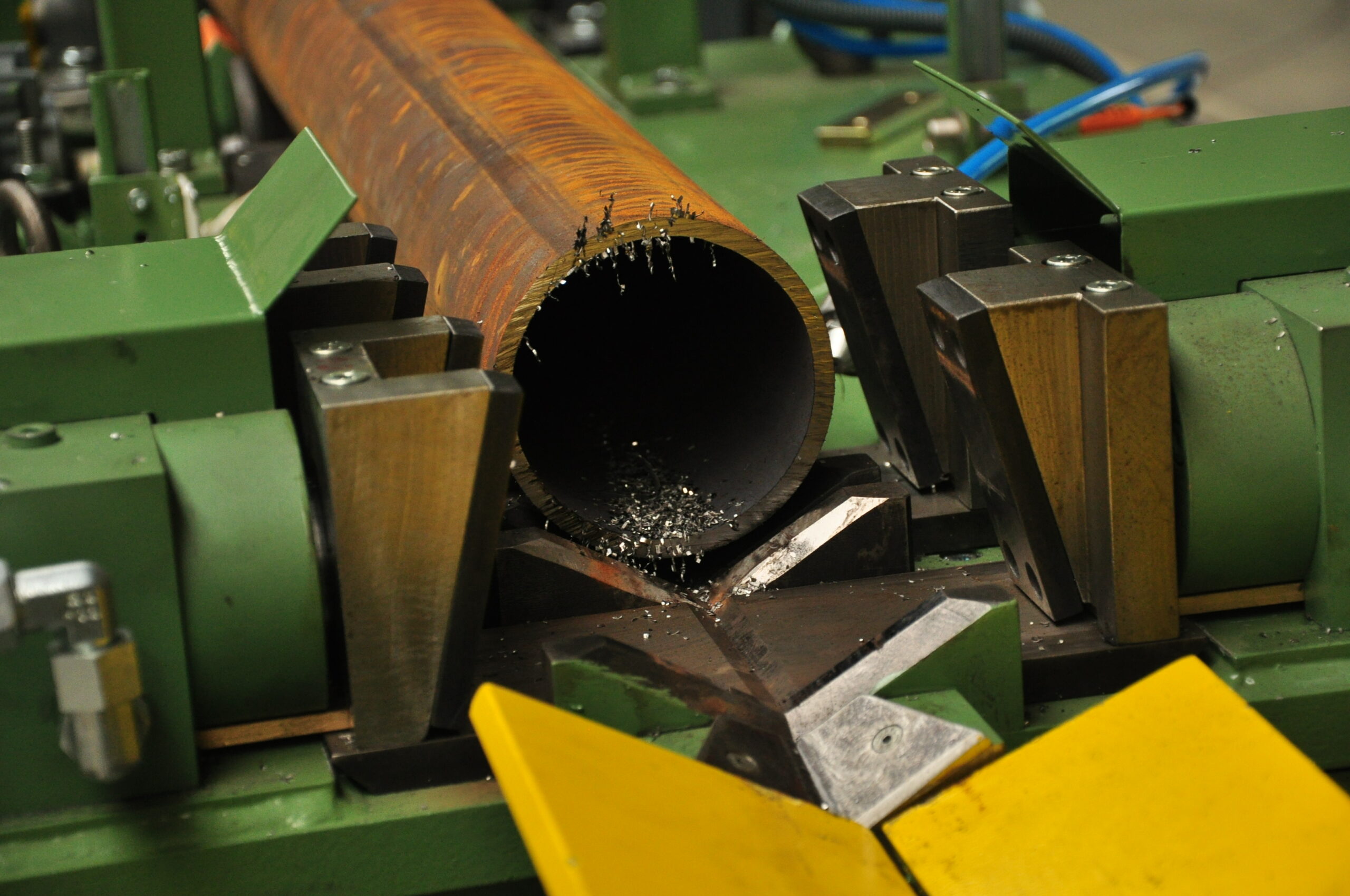

Kotoučové pily jsou určeny k dělení trubek a tyčí na přesné délky. Rozsah dělených trubek od 6 do 140 mm.
Technické parametry stroje
- Dělení trubek na délky s přesností + – 0,5 mm/ 6 m délky.
- Pro průběžné dělení lze využít letmou kotoučovou pilu při posuvu trubek do 1,0 m/sec.
- Pro začištění konců po dělení lze kotoučovou pilu doplnit o kartáčování nebo úkosování konců trubek
Ostatní vybavení stroje
- optimalizace posuvu kotouče s ohledem na průměr a tloušťku stěny trubky
- rozstřik emulze na dělicí kotouč
- čištění kotouče
- ofuk čelistí od třísek po dělení
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-008-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-009-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-010-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-011-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-012-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-013-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-014-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-015-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-016-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-017-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-018-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-019-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-020-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-021-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-022-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-023-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-024-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-025-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-026-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-027-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-028-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-029-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-030-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-031-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-032-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-033-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-034-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-035-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-036-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-037-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-038-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-039-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-040-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-041-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-042-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-043-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-044-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-045-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-046-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-047-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-048-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-049-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-050-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-051-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-052-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-053-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-054-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-055-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-056-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-057-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-058-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-059-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-060-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-061-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-062-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-063-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-064-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-065-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-066-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-067-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-068-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-069-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-070-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-071-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-001-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-002-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-003-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-004-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-005-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-006-14.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-007-14.png)
![Lišty s logy ke každému produkto_kotouč](https://www.prestar.cz/wp-content/uploads/2022/09/Listy-s-logy-ke-kazdemu-produkto_kotouc-1.png)
Letmá pila
Popis zařízení
Letmé pily jsou určeny k dělení trubek a tyčí na přesné délky za kontinuálního pohybu trubky v lince. Jsou konstruovány vždy pro určitý rozsah trubek dle požadavků zákazníka.
Technické parametry stroje
Dělené průměry, profily: |
6 – 120 mm |
Délka po dělení: |
3 –21 m |
Rychlost posuvu trubky, tyče: |
až 2,0 m/sec |
Přesnost dělení: |
+- 1,5 mm |
Řídící systém : |
Simatic S7 1500T |
Hydraulické upínání čelistí |
|
Posuv do řezu hydraulickým válcem nebo servopohonem |
|
Proměnlivý posuv kotouče do řezu při dělení uzavřených profilů |
|
Automatický systém mazání |
|
Bezpečnostní zakrytování s průhledným sklem |
Ostatní vybavení stroje
- Odvíjecí zařízení před vstupem do letmé pily s regulací rychlosti
- Předrovnávání trubek a tyčí po odvíjení před dělením na letmé pile
- Průběžné sledování vad a automatické vyřezávání identifikovaných vad
- Ukládání nadělených trubek a tyčí do kapes dle různých délek
- Ukládání vyřezaných vad do samostatné kapsy
- Popis a značení profilů
- Sběr výrobních parametrů s automatickým ukládáním, možností zobrazení a exportů dat
- Rozšířený servis s možnosti zobrazení návodů, servisních příruček a další potřebné dokumentace na HMI stroje s cílem minimalizovat servisní časy
![Letmá pila cover](https://www.prestar.cz/wp-content/uploads/2022/05/Letma-pila-cover.png)
![Lišty s logy ke každému produkto_letmá pila](https://www.prestar.cz/wp-content/uploads/2022/09/Listy-s-logy-ke-kazdemu-produkto_letma-pila-1.png)
Úkosování trubek
Popis zařízení
Úkosování a srážení hran na koncích trubek slouží k odstranění otřepů po dělení trubek nebo pro vytváření úkosů pro svařování konců trubek.
Technické parametry stroje
- Sražení hran z důvodu přípravy konců trubek pro svařování. Rozsahy sražení jsou 2 – 10 mm x 30, 45 nebo 60 st.
- Pro sražení hran je sklíčidlo vybaveno dvěma až třemi upnutými noži s vyměnitelnými destičkami. Při jednom záběru je sražena vnější hrana, vnitřní hrana a je zarovnáno čelo trubky.
- Pro upnutí trubek je nutno použít hydraulické válce. Trubku je nutno vždy vystředit do osy proti sklíčidlu.
Ostatní vybavení stroje
- Úkosovací stroje zajistí sražení hrany na vnějším a na vnitřním průměru a zarovnání čela trubky.
- Stejným způsobem lze srazit hrany na tyčích nebo šestihranech.
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-007-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-008-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-009-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-010-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-011-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-012-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-013-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-014-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-015-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-016-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-017-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-018-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-019-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-020-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-021-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-022-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-023-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-024-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-025-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-026-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-027-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-028-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-029-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-030-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-031-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-032-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-033-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-034-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-035-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-036-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-037-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-038-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-039-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-040-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-041-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-042-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-043-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-044-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-045-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-046-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-047-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-048-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-049-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-050-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-051-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-052-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-053-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-054-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-055-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-056-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-057-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-058-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-059-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-060-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-061-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-062-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-063-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-064-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-065-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-066-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-067-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-068-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-069-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-070-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-071-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-001-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-002-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-003-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-004-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-005-15.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-006-15.png)
![Lišty s logy ke každému produkto_úkos](https://www.prestar.cz/wp-content/uploads/2022/09/Listy-s-logy-ke-kazdemu-produkto_ukos-1.png)
Třídění a zátkování
Popis zařízení
Použití při separaci a zátkování trubek
Určeno k tloušťce trubek 25 až 140 mm.
Technické parametry stroje
- Sestavení na míru zákazníka
- Třídění trubek po jednom kuse
- Automatický cyklus zátkování
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-019-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-020-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-021-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-022-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-023-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-024-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-025-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-026-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-027-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-028-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-029-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-030-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-031-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-032-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-033-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-034-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-035-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-036-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-037-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-038-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-039-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-040-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-041-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-042-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-043-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-044-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-045-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-046-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-047-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-048-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-049-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-050-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-051-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-052-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-053-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-054-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-055-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-056-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-057-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-058-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-059-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-060-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-061-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-062-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-063-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-064-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-065-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-066-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-067-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-068-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-069-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-070-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-071-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-001-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-002-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-003-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-004-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-005-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-006-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-007-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-008-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-009-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-010-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-011-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-012-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-013-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-014-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-015-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-016-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-017-16.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-018-16.png)
![Lišty s logy ke každému produkto_zátkování](https://www.prestar.cz/wp-content/uploads/2022/09/Listy-s-logy-ke-kazdemu-produkto_zatkovani-1.png)
Kontrolní stoly
Popis zařízení
Tuhé kontrolní stoly vytvářejí základnu pro přístroje ke zkoušení kvality dlouhých výrobků. Kontrolní přístroje identifikují příčné, podélné a bodové povrchové vady. Dokážou odhalit vnitřní vady, záměny materiálu, chemické složení, změny tepelného zpracování a mechanické vlastnosti výrobku. Možné využití pro tyče, trubky z feromagnetických i ne feromagnetických kovů. Od normálních teplot až po zkoušení za tepla a v průběhu celého procesu zpracování.
Technické parametry stroje
- Zajištěn průchod výrobku přes kontrolní přístroje v jednoznačně definované ose a rychlosti
- Informace o poloze výrobku se sbírá v průběhu celého procesu
- Značící zařízení označí barevně přesný úsek výskytu vady Specifikovanou barvou vyznačí druh vady
- Možnost přesunutí kontrolního přístroje do servisní polohy a vytvoření by passu
- Řídící systém předává informaci o shodném nebo neshodném výrobku nadřazeným systémům a dopravním systémům
- Práce v ručním nebo v automatickém režimu
- Všechny části stolu jsou v ručním režimu ovládány pomocí tlačítek na HMI Human Machine Interface)
- Stůl je řízen vlastním PLC
Ostatní vybavení stroje
- Zástavba stolu je řešena dle prostorových možností uživatele
- Přístup k zařízení je řešen přes bezpečnostní zámek s tlačítkem pro povolení vstupu
- Možnost přesunutí kontrolního stolu do servisní polohy a vytvoření by-passu
- Všechny části stolu jsou v ručním režimu ovládány pomocí tlačítek na HMI (Human Machine Interface)
- Stůl je řízen vlastním PLC
- Pro ultrazvukové testování lze dodat systém pro zásobování a hospodaření s vodou
- Dodání dopravní systému za pracovištěm nedestruktivních zkoušek – doprava, třídění shodných a neshodných výrobků
- Možnost technologických strojů pro optimální přípravu povrchů a čel výrobků, nebo pro vlastní testování – kartáčování, odmaštění, ionizační tryska atd.
- Pro ultrazvukové testování nabízíme systém dopravy uzavřených profilů „na dotek“ a tak minimalizovat vniknutí kapaliny do profilu
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-019-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-020-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-021-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-022-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-023-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-024-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-025-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-026-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-027-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-028-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-029-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-030-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-031-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-032-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-033-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-034-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-035-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-036-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-037-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-038-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-039-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-040-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-041-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-042-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-043-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-044-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-045-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-046-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-047-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-048-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-049-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-050-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-051-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-052-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-053-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-054-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-055-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-056-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-057-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-058-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-059-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-060-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-061-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-062-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-063-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-064-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-065-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-066-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-067-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-068-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-069-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-070-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-071-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-001-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-002-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-003-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-004-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-005-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-006-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-007-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-008-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-009-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-010-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-011-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-012-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-013-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-014-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-015-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-016-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-017-17.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-018-17.png)
![Lišty s logy ke každému produkto_NDT](https://www.prestar.cz/wp-content/uploads/2022/09/Listy-s-logy-ke-kazdemu-produkto_NDT-1.png)
Balící stroje
Popis zařízení
Trubky a tyče jsou automaticky uloženy do tvaru 4-hranu nebo 6-hranu. Dle průměru trubek a požadovaného rozměru svazku je automaticky vytvořen svazek.
Technické parametry stroje
Profily ke svazkování: |
Kulaté, šestihranné, čtyřhranné, obdélníky , profilová ocel |
Průměry trubek: |
6 – 120 mm |
Délky trubek, tyčí: |
3 – 18 m |
Velikost svazku 6HR, 4 HR: |
do 600 mm |
Hmotnost svazku: |
do 6 000 kg |
Řídící systém: |
Simatic S7 |
Cyklus trubek na vstupu: |
od 5 sec/ kus |
Cyklus na výstupu: |
V závislosti na počtech kusů ve svazku |
Cyklus páskování: |
Cca 60 sec na jednu pásku |
Vybavení pultu: |
Zobrazení procesu, statistika výroby, chybová hlášení, přenos dat do řízení firem |
Automatický, poloautomatický a ruční režim |
Ostatní vybavení stroje
- Rozdružení volného balíku a podávání trubek do balicího stroje po 1 ks
- Vybavení stroje stahovacími pásy pro vytvoření kruhového svazku při ručním páskování
- Vážení svazku na certifikovaných vahách a tisk vážícího lístku
- Automatické zátkování trubek a uzavřených profilů transportními zátkami
- Značení jednotlivých trubek a celých svazků na základě požadavku zákazníka
- Podkládání ocelové pásky papírovými páskami
- Balení celého svazku nebo konců svazku do stretch folie
- Profouknutí trubek k odstranění kapaliny, třísek a nečistot z vnitřního průměru
- Rozšířená vizualizace na HMI stroje s důrazem na intuitivní a podrobné zobrazování provozních stavů balícího stroje
- Rozšířená diagnostika na HMI stroje s důrazem na zobrazení místa vzniku poruchy na dispozičním schématu stroje
- Rozšířený servis s možnosti zobrazení návodů, servisních příruček a další potřebné dokumentace na HMI stroje s cílem minimalizovat servisní časy
- Sběr výrobních parametrů s automatickým ukládáním, možností zobrazení a exportů dat
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-003-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-004-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-005-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-006-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-007-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-008-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-009-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-010-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-011-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-012-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-013-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-014-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-015-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-016-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-017-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-018-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-019-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-020-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-021-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-022-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-023-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-024-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-025-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-026-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-027-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-028-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-029-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-030-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-031-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-032-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-033-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-034-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-035-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-036-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-037-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-038-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-039-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-040-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-041-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-042-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-043-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-044-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-045-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-046-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-047-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-048-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-049-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-050-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-051-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-052-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-053-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-054-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-055-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-056-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-057-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-058-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-059-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-060-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-061-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-062-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-063-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-064-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-065-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-066-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-067-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-068-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-069-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-070-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-071-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-001-18.png)
![](https://www.prestar.cz/wp-content/uploads/2022/09/ezgif-frame-002-18.png)
![baličky](https://www.prestar.cz/wp-content/uploads/2022/09/balicky-1.png)
Bruska trubek vnější Centerless
Popis zařízení
Broušení trubek v rozsahu 9 – 140 mm.
Slouží k dosažení vysoké kvality broušeného povrchu trubek a k odstranění povrchových vad a okují po válcování trubek.
Technické parametry stroje
- Trubka je poháněna vodicími válečky a projíždí podél řady brusných pásů
- Trubka je vedena podél řady brusných pásů pomocí vodicích rolek rychlostí až 30 m/min
- Při malých úběrech lze dosáhnout kvality povrchu až Ra 0,4.
- Broušení probíhá pod vodní emulzí nebo za sucha.
![centerless](https://www.prestar.cz/wp-content/uploads/2022/09/centerless-1.png)
